On Saturday, February 14, 2015 my long desired delivery arrived:

TTSH DIY Kit Delivery TTSH DIY Kit Delivery

20150214_162057_4694cr

TTSH DIY Kit Delivery

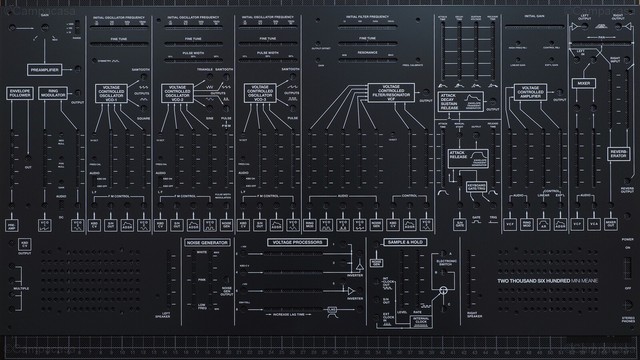

It arrived in good condition, postal services did a good job. Let's take a look at the contents. Carefully bubble wrapped there is the front panel:

TTSH Front Panel TTSH Front Panel

20150216_203903_4714c

TTSH Front Panel

[scale in centimeters]

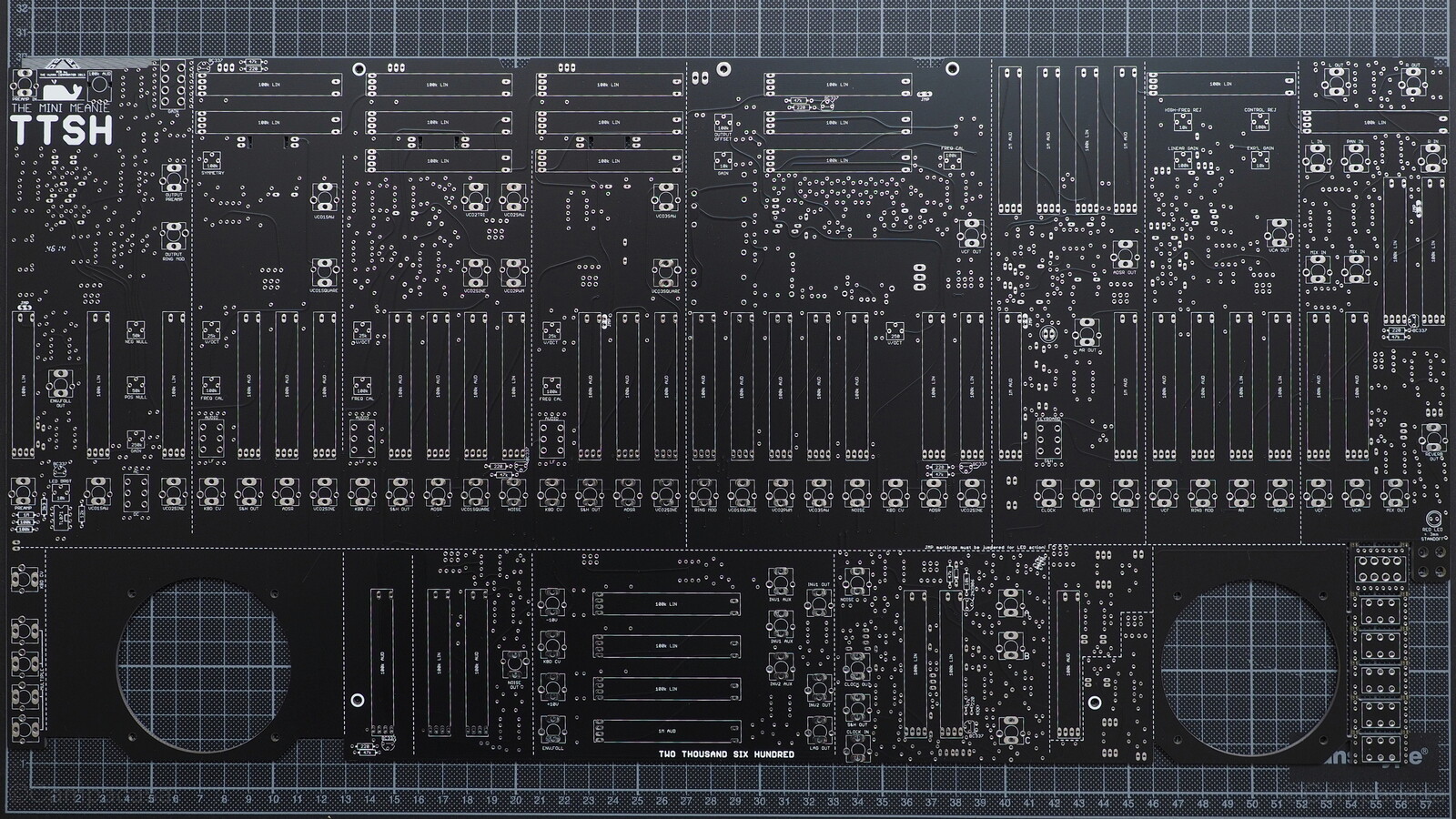

Next, there is the main circuit board:

TTSH Circuit Board, front panel side TTSH Circuit Board, front panel side

20150216_201216_4705c

TTSH Circuit Board, front panel side

[scale in centimeters]

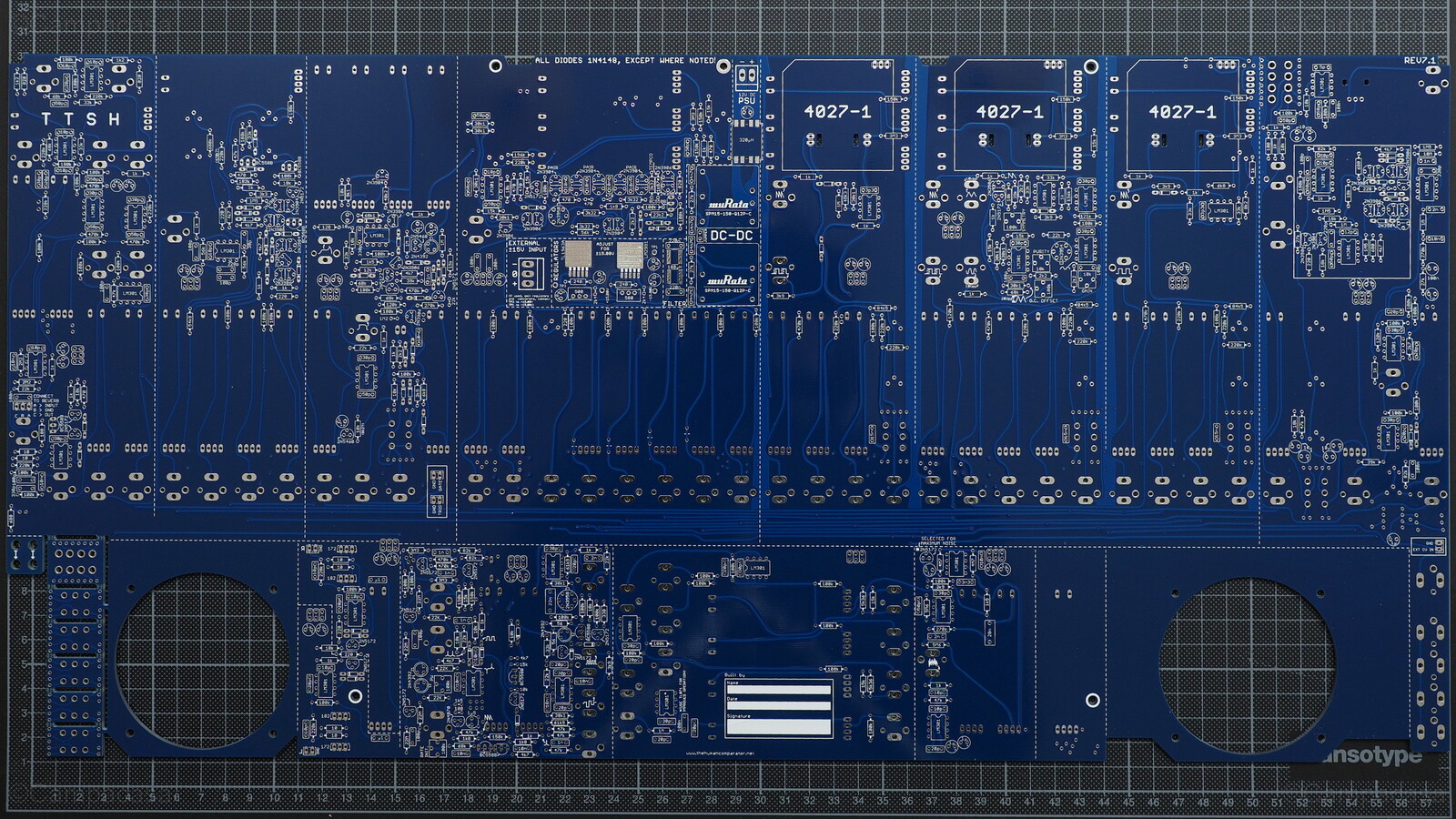

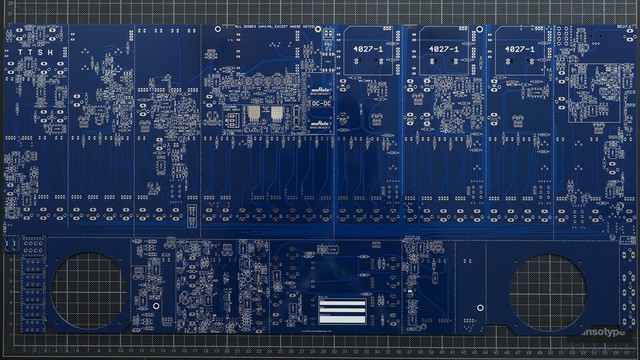

TTSH Circuit Board, component side TTSH Circuit Board, component side

20150216_201447_4706c

TTSH Circuit Board, component side

[scale in centimeters]

A small part in the lower corner will be detached and used to install the switches on correct distance from the main board.

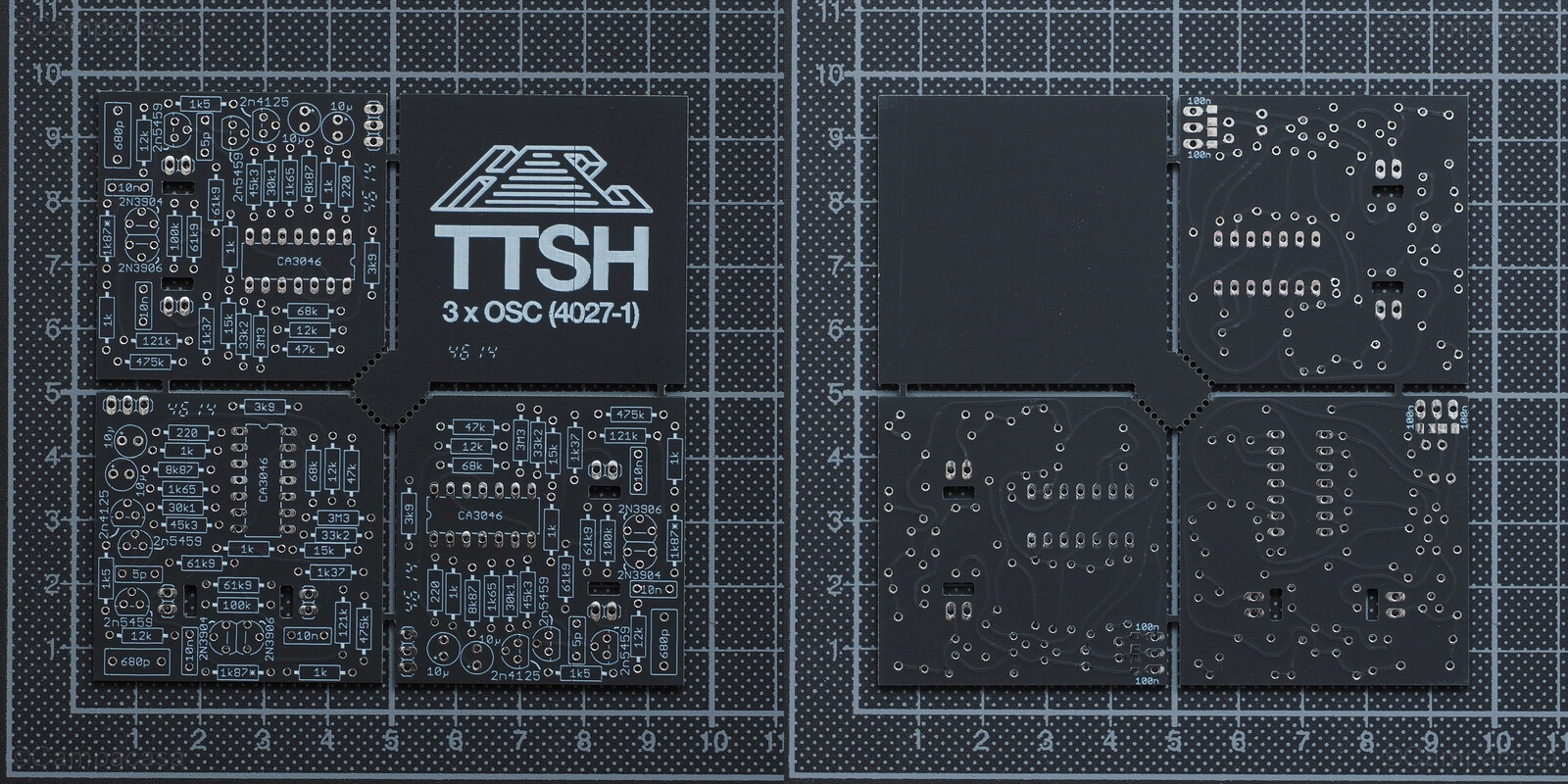

Then there are the three small VCO boards (still attached together here) that will get connected at the top of the main board:

TTSH VCO Boards TTSH VCO Boards

20150216_202513_4711m

TTSH VCO Boards

[scale in centimeters]

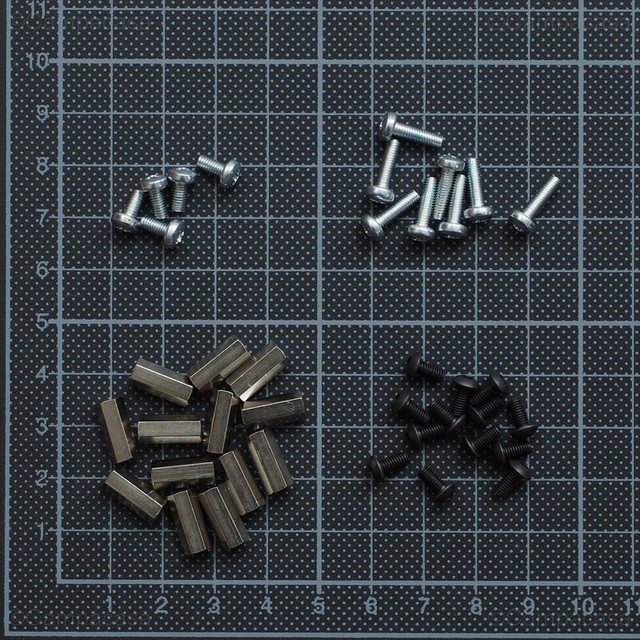

And finally there is a little bag with some screws and spacers:

TTSH Screws and Spacers TTSH Screws and Spacers

20150216_202702_4713c

TTSH Screws and Spacers

[scale in centimeters]

Now I need to order various components as these are not included in the kit. Once I'm on that, the story will continue.
