Next to the VCF section is the ADSR and AR section, which I've finished now, too:

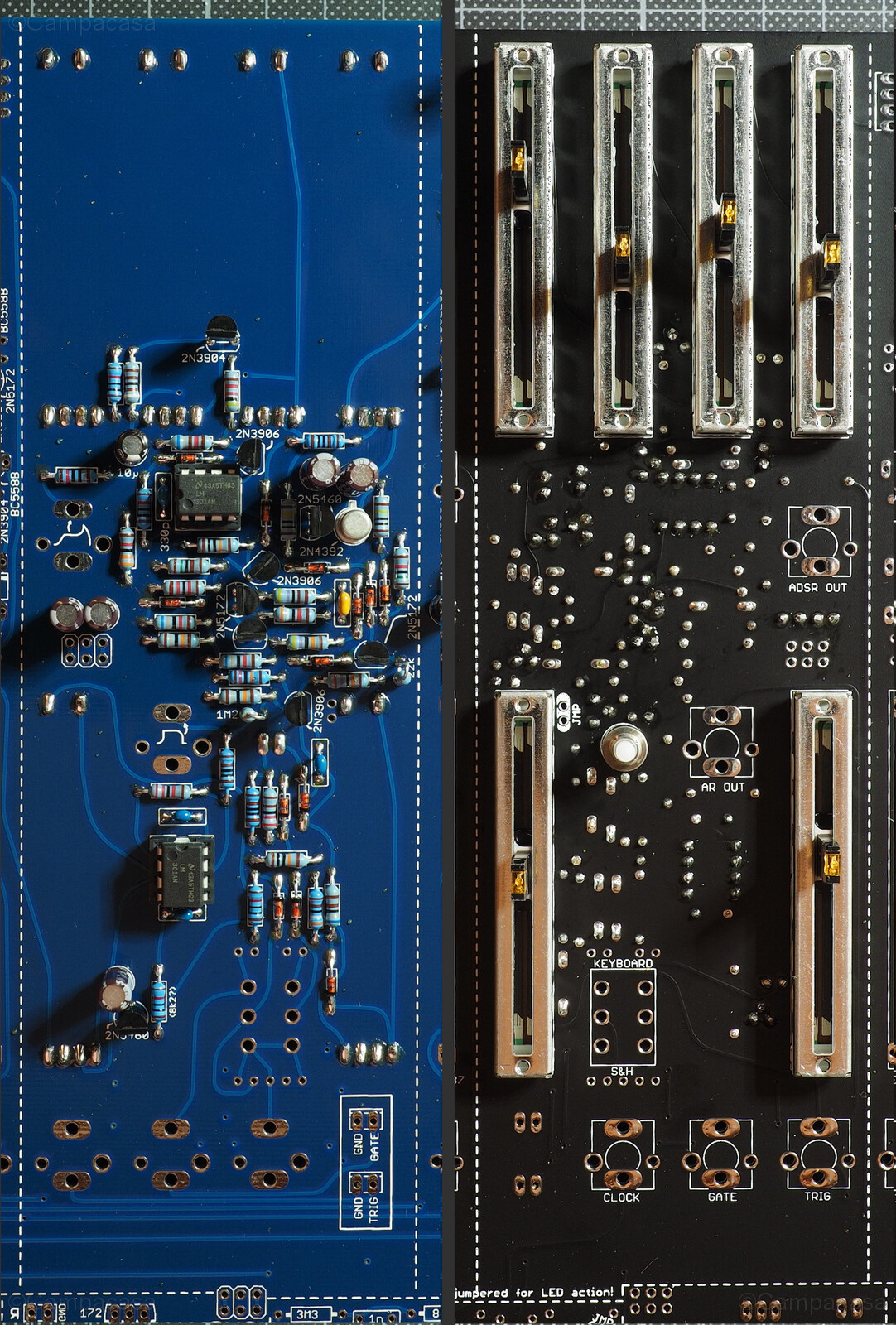

Main Board, ADSR and AR Completed Main Board, ADSR and AR Completed

20150414_231757_5337m

Main Board, ADSR and AR Completed

Jacks and switch still missing, sliders and button installed for testing.

Powering up again, connecting the according ADSR and AR outputs to my oscilloscope and pushing the button shows the following waveforms (after some fine-tuning of the sliders):

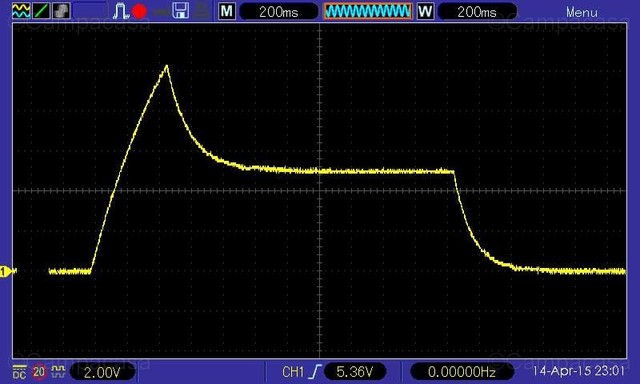

Testing ADSR Signal Testing ADSR Signal

20150414_ADSR

Testing ADSR Signal

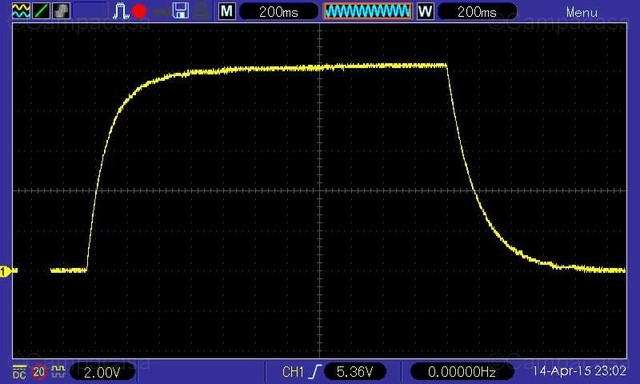

Testing AR Signal Testing AR Signal

20150414_AR

Testing AR Signal

This looks pretty good, I think.
